Charging Solutions

Customers can select from a wide range of charging solutions.

Charge options include 12V, 240V, 415V, 1000V and even DC to DC fast charging that can see typical charge times as low as 16min.



1000V Charge Box

Up to 4 vehicle outlets

Charge box installed into site 1000VAC supply.

Power 7kW to 90kW.

Up to four 22kW outlets can be installed in each charge box allowing simultaneous charging of vehicles.

Connection options are hardwired lead or plug in cable with 415V or Type 2 (Mennekes) plugs to the vehicle.

DC-to-DC Fast Charger

DC-DC fast charger hardwired into site power.
Power 50kW to 200kW.
Vehicle connection CCS standard.
Charge Rate LTO ~135kW
Charge Rate NCM ~80kW

“The LTO battery in the ZED70 Ti consists of individual 23Ah LTO modules combined into a system delivering a nominal voltage of 330V, with a capacity of 60kWh.”

Learn more about our batteries

415V VAC Direct Charging

7kW to 22kW charging.
3phase 415V with neutral up to 32A.
Installed into site power.
Connection options are hardwired lead or plug in cable with 415V or Type 2 (Mennekes) plugs to the vehicle.

1000V VAC Direct Charging

22kW Direct Charging (Requires 1000V Option).
1000VAC connection directly between Pump Box or Jumbo Box to ZED70 then plugs into existing pump box directly to power 7kW to 90kW.
Connection options are hardwired lead or plug in cable with 1000V New Macey or other connectors, 60A or 150A.

We created an Australian-built, solar chargeable, underground-ready, battery electric light vehicle (bELV) so that passionate leaders can demonstrate progress, and mining companies can start their journey to Zero.

240V Direct Charging

Single or 3 phase 240VAC up to 32A.
Installed into site power.
Connection options are hardwired lead or plug in cable with 240V or Type 2 (Mennekes) plugs to the vehicle.

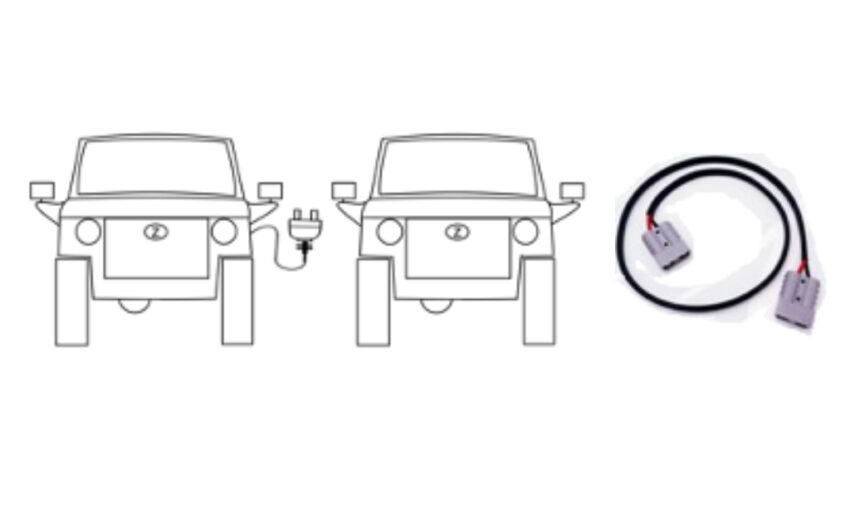

12V Direct Charging

12VDC direct low energy charging.
3.5kW power connected direct from suitable 12V DC source.
