We’ve created an Australian-built, solar chargeable, underground-ready, battery electric light vehicle (bELV) so that passionate leaders can demonstrate progress And mining companies can start their journey to Zero.
Australian Design Rules (ADR) approved, means the ZED70 Ti is permitted to be driven on public roads. ADR provides operators with assurance that the vehicle meets Australian safety standards.
Meaning safety, reliability and peace of mind.
Has passed validation testing and has been (ZED70 Ti) commissioned for underground mine use.
Surface battery charging controlled to provide regenerative braking during first descent.
Has passed validation testing and has been (ZED70 Ti) commissioned for underground mine use.
Surface battery charging controlled to provide regenerative braking during first descent.
At ZERO Automotive, we’re committed to Safety by Design. The ZED70 Ti LTO Battery Design features a boxed enclosure for added safety and risk reduction.
Battery TechnologiesWe’ve thought through a wide range of charging solutions that will keep the ZED70 Ti on the road. Range anxiety is a thing of the past with clear battery range monitoring.
Charging Solutions
About the ZED70 Ti
| Base vehicle | |
|---|---|
| Chassis & Cab | Toyota LandCruiser 79 Series |
| Passengers | (Dual Cab) 5 | Single Cab 2 |
| Tray | Aluminium Tray | Galvanised Steel Tray |
| GVM | 3,300kg |
| Motor | |
|---|---|
| Type | 3 Phase Asynchronous with regenerative braking |
| Emissions Control | Zero emissions |
| Power | 134W(peak) | 75W(cont.) |
| Torque | 700Nm(peak) | 358Nm(cont.) |
| Efficiency | 95.5%(peak) |
| Batteries (LTO) | |
|---|---|
| Capacity | 60Wh |
| Depth of Discharge | 98% |
| Effective Battery Capacity | 59 kWh |
| Life Cycle | 20,000 Cycles (-4,000,000kms) to 80% State of Health |
| 415V 3-phase Charge Time | 3 hrs |
| DC - DC Charge Time | -80% Charge in 16 mins |
| Electrical (LTO) | |
|---|---|
| Tractive System Voltage | 331V |
| Charging | 22kW On-board Charger - 415VAC 3-Phase Supply |
| DC - DC Fast Charging | ~135kW - External Charger |
| Low Voltage Battery | Toyota | 12V Lead Acid |
| Suspension & Drive-train | |
|---|---|
| Transfer Case | Toyota | 1:1, 1:2.41 |
| Front Suspension | Toyota | Coil Spring |
| Rear Suspension | Toyota | Leaf Spring |
| Differential Ratios | Toyota | 3.909, 4.1, 4.3 |
| Steering | Hydraulic Electric Pump |
| Brakes | Toyota | Hydraulic Disc Brakes |
| Ancillaries | |
|---|---|
| Heater | 6kW HV Battery Powered Unit |
| Air-Conditioning Compressor | 1kW HV Battery Powered Unit |
| Electrical Safety Systems | |
|---|---|
| ZED70 Ti | Isolator Switch |
Manual Service Disconnect |
|
Battery Management System |
|
Automatic Electrical Isolating Contractors |
|
Multiple Mechanical HV Isolators |
|
Fast Acting Fusable Links |
|
eBrake |
|
| Features | |
|---|---|
| Vehicle System Display | 6° multimedia display, showing critical vehicles parameters |
| Battery Box Protection | 3mm Steel + Polyurea Coating + 1.6mm Stainless Bash Plates |

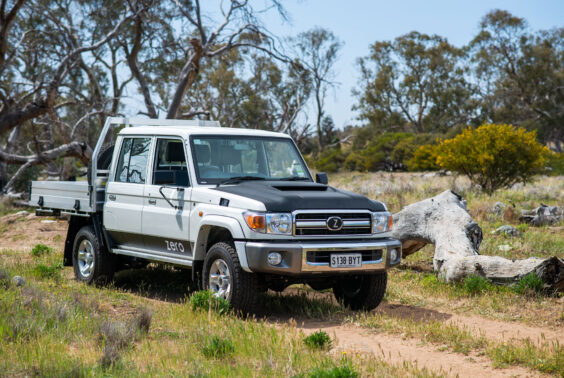

Our ADR-approved, road-ready and reliable battery-electric cruiser.
