Turnkey Solutions
The ZED70 provides a platform for Toyota LandCruisers to join the journey toward Zero emissions.
Our turnkey solution for operations trying to eliminate scope 1 emissions while reducing operating costs.
With components rigorously tested and validated within a mining application.
| Water Ingress | |
|---|---|
| Medium/low pressure water applied | No issue presented |
| Driven through LV wash bay | No issue presented |
| Driven -400mm deep puddle | No issue presented |
| Plugged-in charged in heavy rain | No issue presented |
| Battery Suitability and Validation | |
|---|---|

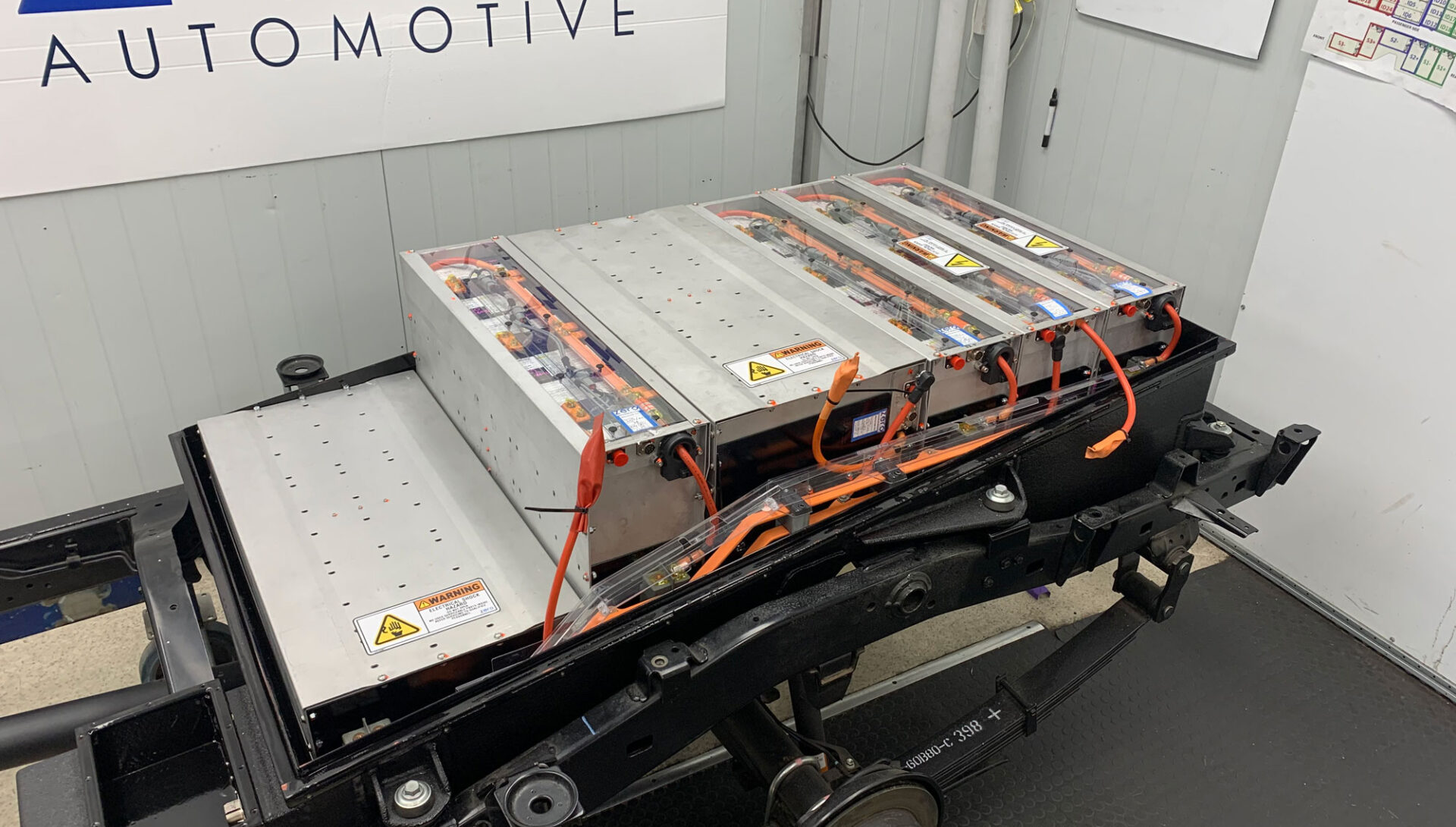

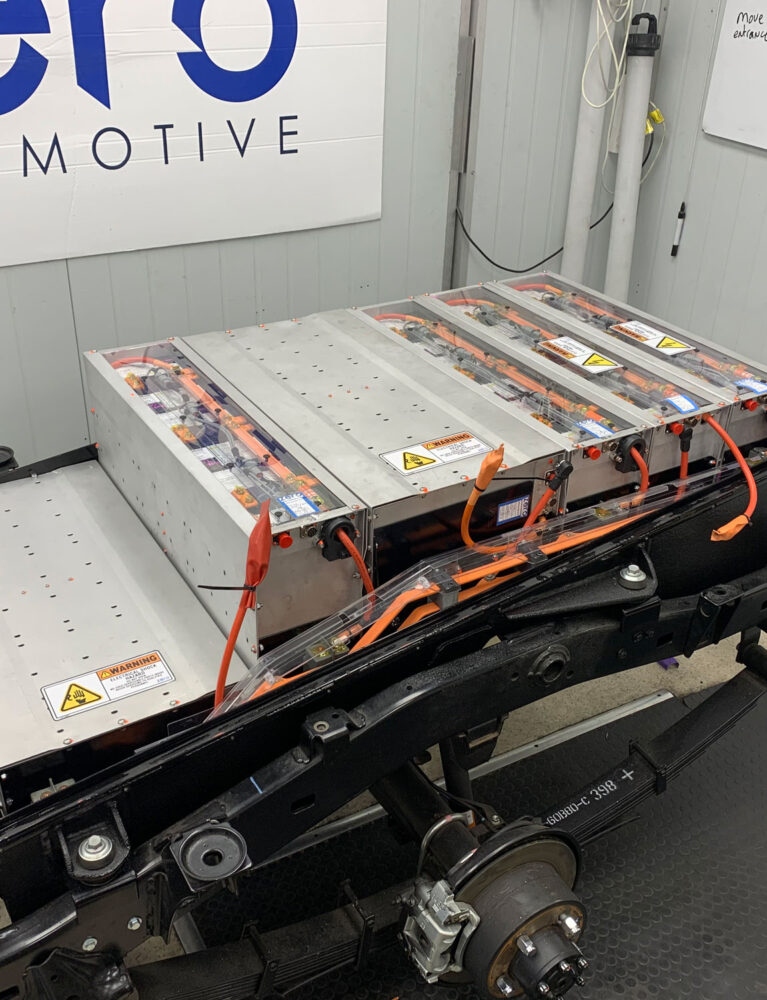

| Battery Comparisons (NMC, LTO, NCM) | LTO As preferred battery |
| Puncture Tests (10T) | Heat, gases & fumes detected, little/none in LTO |
| Overheating Tests (via thermal lance) | NMC Weakest, LTO most resilient |
| Short-circuiting Tests | NCM combusted, LTO no reaction |
| Thermal Runaway Tests | LTO most resilient Lithium battery |
| Battery Range and Management | |
|---|---|
| Effective Range | 60kW LTO Li-Ion Battery with 98% depth of discharge |
| Suitable Range Display | Heads Up Display - Underground use Aligned with time left rather than km |
| Range resilience testing | Single battery charge |
| Zero-emission charging | Successfully charged from solar/battery array (no grid connection ) |
| Regen For decline Speed Holding | |
|---|---|
| Validate with regen possible | Vehicle successfully set to hold at 30km/hr for 1 in 6 decline |
